Industrial gas safety monitoring depends on reliable fixed detection points, clear signal outputs, and alarm integration that can support daily plant operation. The GTQ-WD6200 fixed gas detector is designed for industrial use and is positioned by PESV for sites that need continuous monitoring of combustible or toxic gases in demanding environments.
According to the official PESV product page, the GTQ-WD6200 fixed gas detector adopts a high-performance gas sensor and MCU technology, combined with SMT manufacturing process. Its published advantages include good repeatability, high accuracy, stable performance, and long service life. For petrochemical plants, gas utilities, storage areas, production workshops, and other industrial safety projects, these are practical selection points.
Why Fixed Gas Detection Still Matters
Portable gas detectors are important for inspections and personnel safety, but many high-risk areas need continuous fixed monitoring. A fixed gas detector can stay in a selected location, watch for abnormal gas conditions, and send signals to a control panel, PLC, DCS, alarm system, or other site safety equipment. This makes fixed detection a core part of gas leak prevention and emergency response planning.

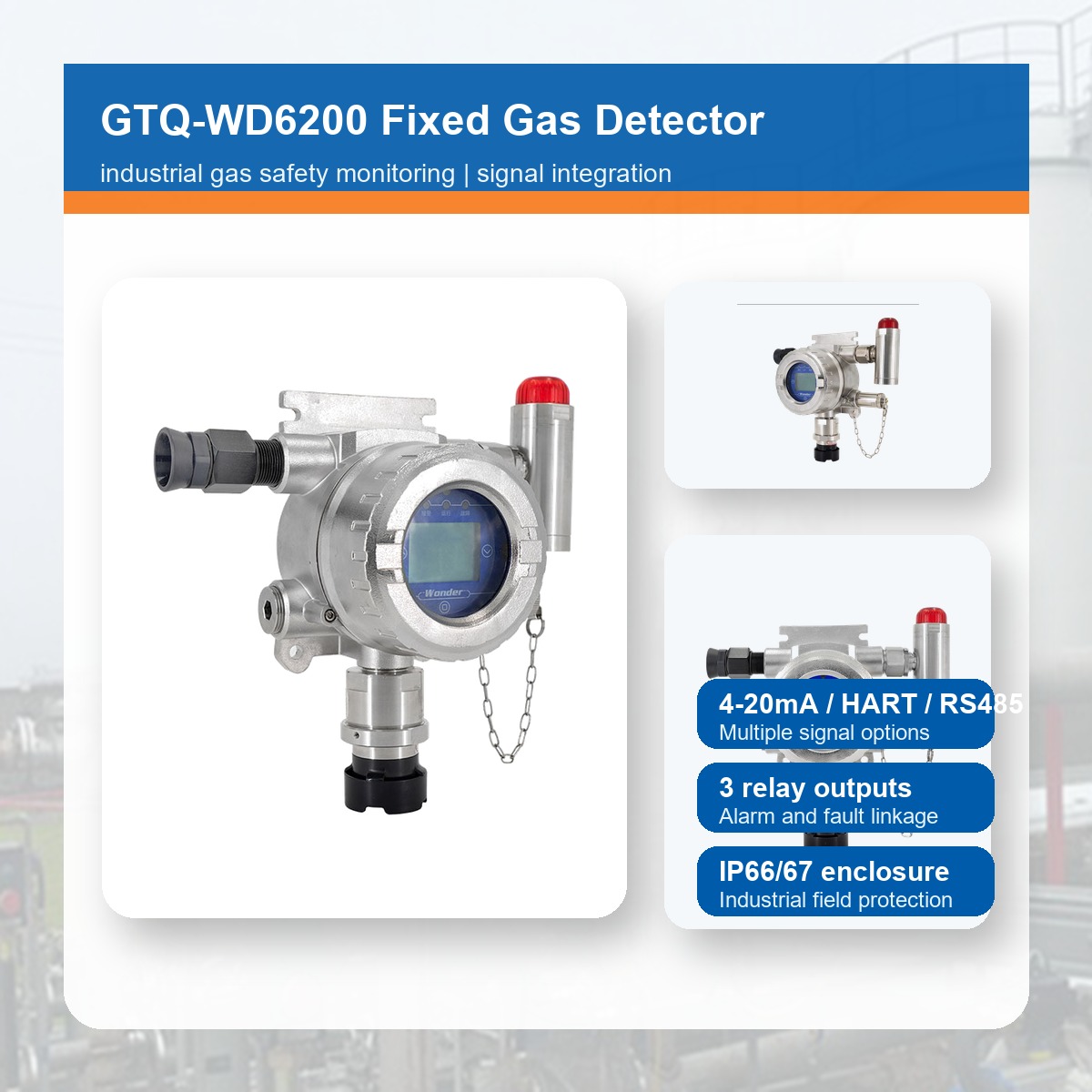

The GTQ-WD6200 is especially relevant for projects where the buyer needs more than a local display. Its published electrical outputs include 4-20mA, HART, and RS485-RTU. These signal options help engineers discuss how the detector can be integrated into existing monitoring systems, while the relay outputs can support first alarm, second alarm, and fault linkage.
Signal Output and Alarm Integration
One reason industrial buyers compare fixed gas detectors carefully is signal compatibility. The GTQ-WD6200 fixed gas detector supports 4-20mA analog output and RS485-RTU digital upload. The product page also lists HART output and support for HART handheld communicator settings. For plants with established control architecture, these details can simplify engineering discussion before purchase.
Alarm linkage is another important consideration. GTQ-WD6200 lists three relay outputs for first alarm, second alarm, and fault. The published relay specification is SPST contacts rated 3A 30Vdc or 3A 250Vac. This allows project teams to consider how gas alarm events may be connected with sound and light alarms, ventilation, control panels, or other response equipment according to the site design.
Maintenance and Operation Features
Industrial instruments must be usable by the maintenance team, not just impressive on a specification sheet. PESV lists non-contact operation by magnetic bar or infrared remote control for GTQ-WD6200, which can help operators handle settings without opening the enclosure in some field situations. The product page also lists a high-performance LCD screen display, smart sensor module, Bluetooth communication, and optional remote upgrade function.
The detector uses natural diffusion sampling and is listed for combustible gas and toxic gas measurement. Published response time is T90 ≤15 seconds for LEL and T90 ≤30 seconds for toxic gas. State indication is listed as yellow for fault, red for alarm, and green for power, giving operators a simple visual reference during inspection.
Environmental and Installation Considerations
The GTQ-WD6200 product page lists DC24V±6V power with power consumption ≤3.0W, stainless steel enclosure material, NPT3/4 cable entry, dimensions of 130mm x 209mm x 116mm, and weight of about 5.5kg. It also lists IP66/67 ingress protection, humidity ≤95%RH with no condensation, and ambient pressure of 86KPa to 106KPa.
For operating temperature, the published range is -40 to 70℃ for LEL and -20 to 50℃ for toxic gas. The product page also lists explosion protection information including II 2GD Ex db IIC T6 Gb and Ex tb IIIC T80℃ Db. Buyers should still confirm the required gas type, measuring range, certification requirements, installation area classification, output method, and local acceptance requirements before ordering.
Application Fit for Industrial Safety Projects
GTQ-WD6200 can be discussed for petrochemical areas, gas industry facilities, tank farms, process units, utility rooms, wastewater treatment, offshore and production-related sites, and other locations where a fixed detection point is needed. The best application is not defined only by the detector model, but by gas risk, installation position, alarm logic, maintenance access, and the control system that receives the detector signal.
For distributors and project buyers, the GTQ-WD6200 fixed gas detector can be presented as a stainless-steel fixed detector for industrial monitoring projects that require signal integration, relay linkage, local display, and field-friendly operation. PESV can help buyers compare fixed gas detector models, confirm gas type and output needs, and select related control panel or alarm system options for complete project support.
