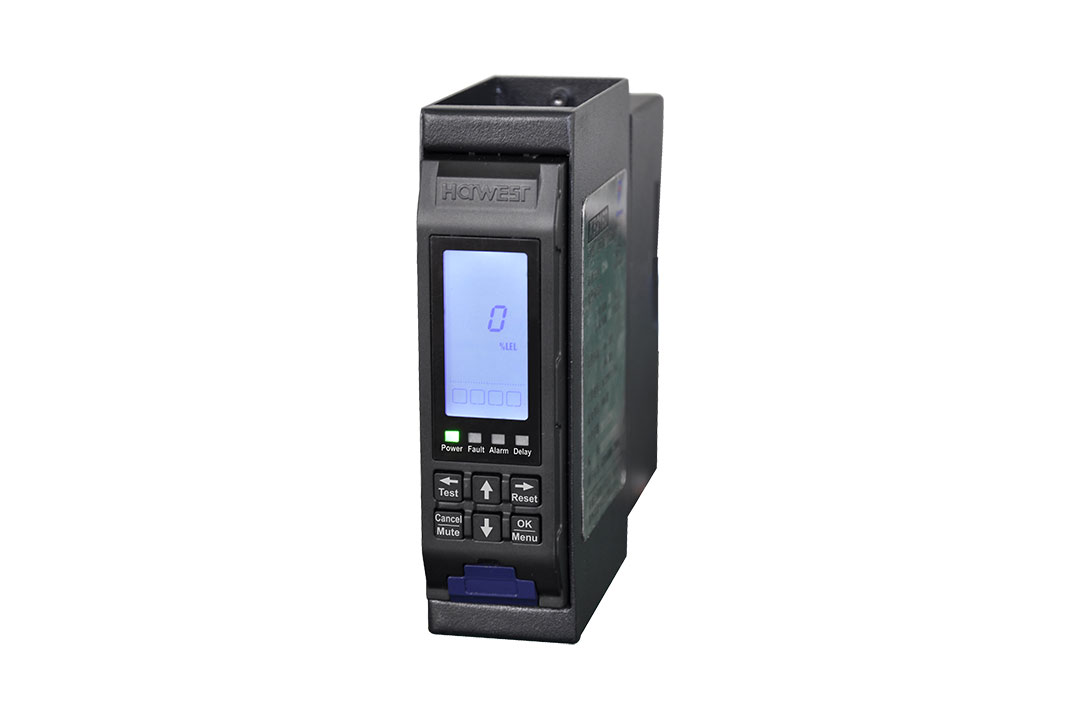

KB2160 Gas Control Panel
- 4~20mA signal connection
- 3 passive relay output for each channel
- LCD display
- Audible and visual alarm
- Audible alarm: 65dB~115dB @1m
- Approval: CE
Description
KB2160 gas control panel is designed for industrial use with 4~20mA communication signal to integrate all the gas detectors in different sites, to monitor the gas concentration continuously and conveniently.
Features
4~20mA signal connection
3 passive relay output for each channel
LCD display
Auto-search after power on
Audible and visual alarm
Specifications
| Power | AC220V±15%, 50Hz±1% |
| Consumption | ≤10W |
| Voltage output | DC24V±25% |
| Working temperature | -10℃～+50℃ |
| Working humidity | ≤95%RH (no condensation) |
| Alarm method | Visual and audible |
| Audible alarm | 65dB~115dB @1m |
| Ingress protection | IP54 |
| Relay | 3 passive replay output for each channel |
| Relay capacitance | 2A/AC220V |
| Cable required | RVVP3×1.5mm2, RVVP4×1.5mm2 |
| Transmission distance | ≤1000m |
| Installation type | Wall mounted, Cabinet type |

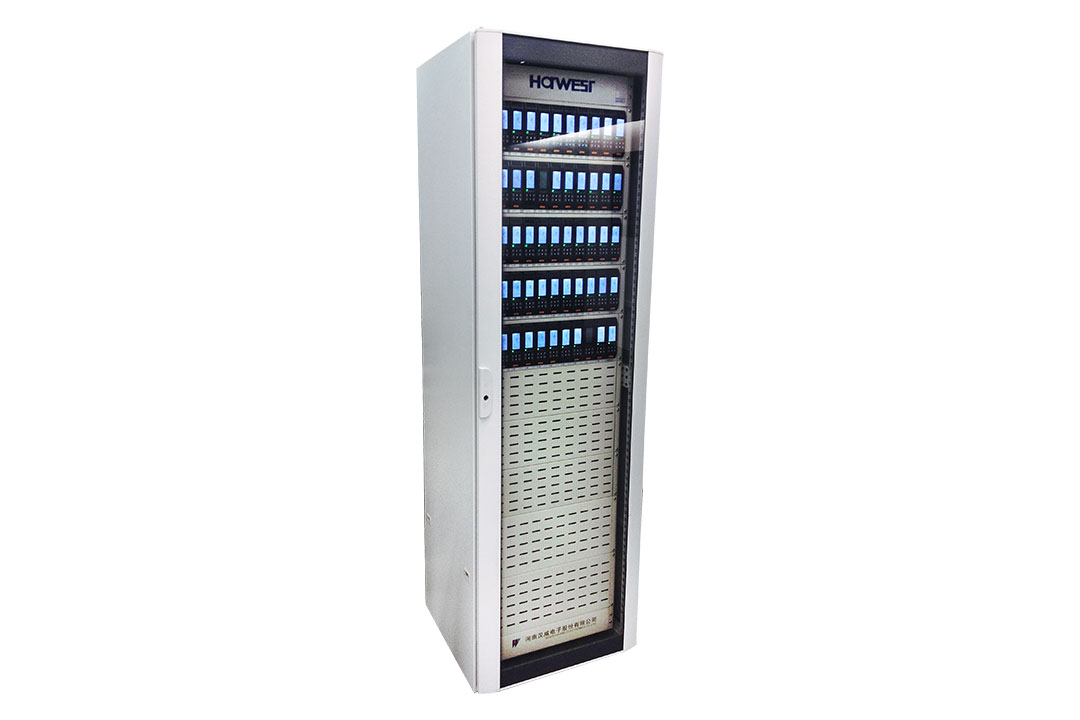

| Detector quantity | Wall mounted type: 8 channels maximum Cabinet type: 80 channels maximum |
| Approval | CE |
