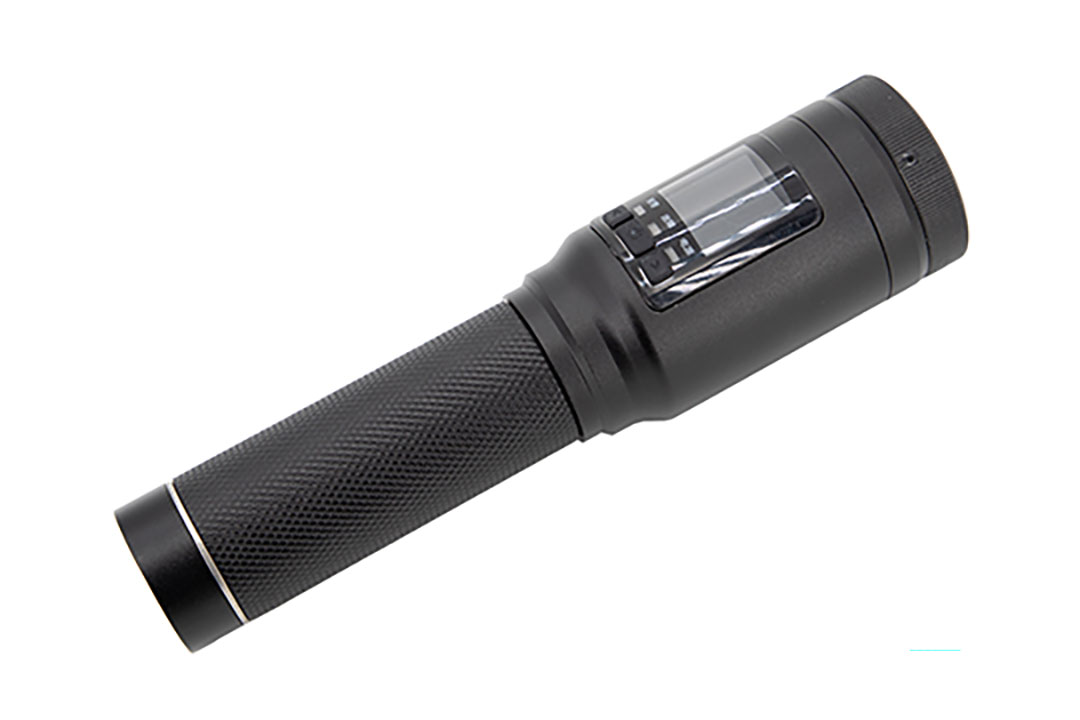

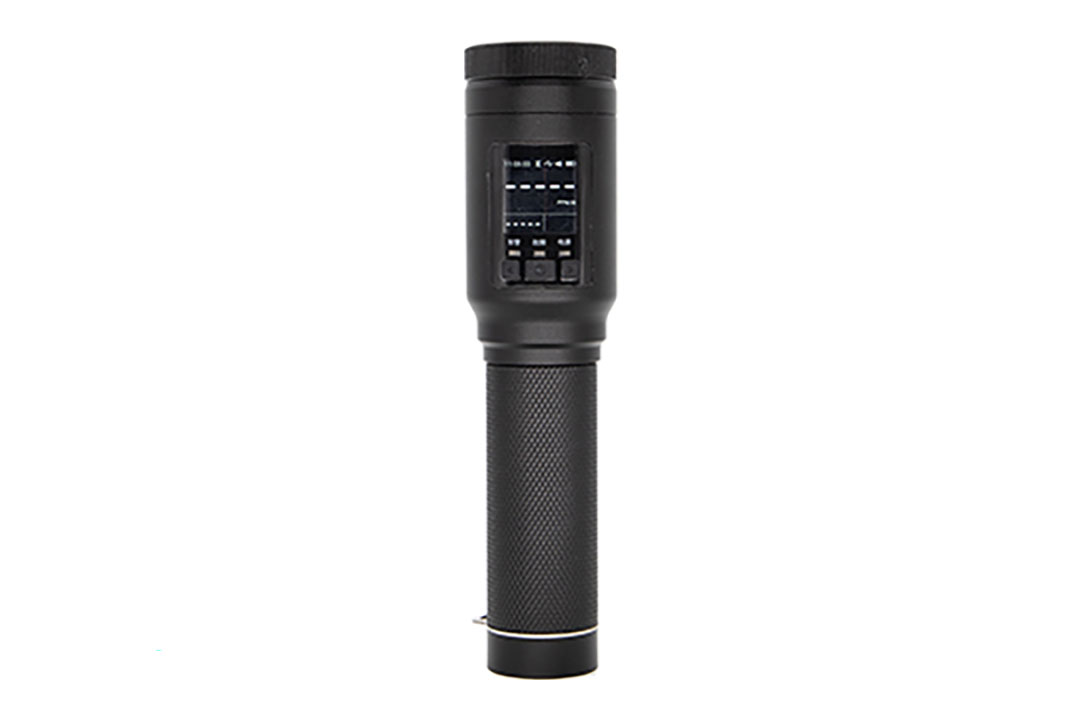

HRLD200 Handheld Laser Detector
- Remote detection, maximum distance is 50 meters
- Small size and light-weight easy to carry
- Good selectivity, response to Methane only
- One-button operation
- Sensitivity of 5ppm·m
HRLD200 handheld laser Methane detector adopts the most advanced TDLAS technology, which will realize non-contact and remote detection for the places where the inspector cannot reach. The leakage point and source can be located and found accurately and quickly, then to improve the work efficiency and reduce labor intensity.
Remote detection, maximum distance is 50 meters
Small size and light-weight easy to carry
Good selectivity, response to Methane only
One-button operation
Sensitivity of 5ppm·m
Fast response, no alarm delay
Color LCD display
Optional display detector of ppm·m, LEL·m and VOL·m
Shock proof design
Visual, audible and vibration alarm
Adjustable alarming level between 0-9999ppm·m
Self -test function
Low battery warning
Low consumption, can be used for continuous testing
Intrinsically safe design
| Gas | Natural gas (CH4) |
| Principle | TDLAS |
| Sensitivity | 5ppm·m |
| Detection range | 0～100000ppm·m |
| Distance | 50 meters |
| Response time | T90 < 0.1 second |
| Working temperature | -20℃～50℃ |
| Storage temperature | -20℃～60℃ |
| Humidity | <99% RH (no condensation) |
| Explosion-proof grade | Ex ib IIB T4 Gb |
| Ingress protection | IP68 |
| Weight | About 380g |
| Power supply | DC3.7V rechargeable Lithium battery |
| Working time | 10 hours after full charging |
| Display | Color LCD |
| Lifespan | 10 years |
| Alarming method | Visual and audible alarm |
| Penetrating | An object that can be penetrated by light without effecting detection, as through ordinary glasses. |
| Data transmission | Blue-tooth |
| Laser safety class | Detecting beam: Class 1 Aiming beam: Class 3R |
| Accessory | Battery charger, wrist band, carrying case., etc |
