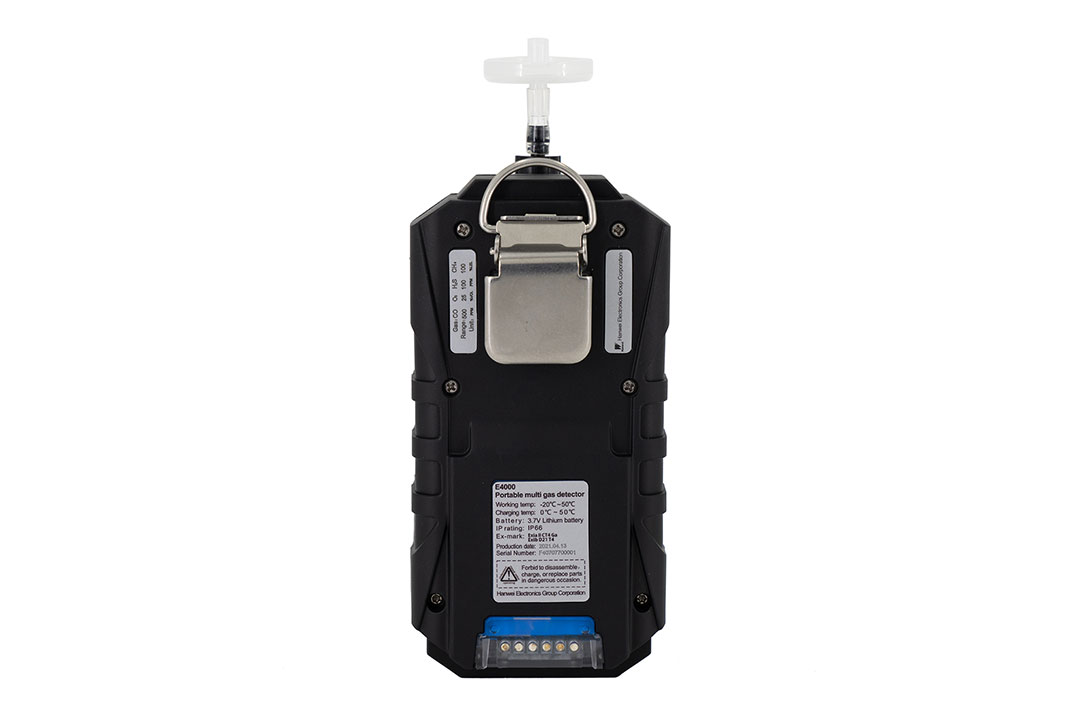

E4000 Portable Multi-gas Detector

  • Interchangeable smart sensor module
  • MOS, catalytic, electrochemical, infrared, PID sensors selectable
  • Built-in sampling pump (optional)
  • GPS, GPRS and man down function (optional)
  • Measuring gas: O2, CO, H2S, Combustible
  • Ingress protection: IP66
Description

E4000 is a united gas detector measuring maximum four (4) gases, to protect the disasters caused by the O2 deficiency, toxic gas poisoning and combustible gas explosion. It measures continuously maximum four gases of combustible gas, O2 and toxic gases, and displays their concentrations. Once the risk occurs, it also raises the alarm (visual, audible and vibrative). By adopting interchangeable smart sensor module, it can be made for detecting 2 gases, 3 gases and 4 gases.

Features

Interchangeable smart sensor module

Intrinsically safe

MOS, catalytic, electrochemical, infrared, PID sensors selectable

Built-in sampling pump (optional)

Visual, audible and vibrative alarm

Adjustable alarm levels and span calibration value

STEL and TWA alarm for toxic gases

Password management

Real-time clock

Self-test after power on

Self-diagonstic and self-correction function

GPS, GPRS and man down function (optional)

Specifications
Measuring gasO2COH2SCombustible
Measuring range0-25%VOL0-500ppm0-100ppm0-100%LEL
Sensor typeElectrochemicalElectrochemicalElectrochemicalCatalytic
Measuring typeDiffuse naturally (pump sampling if pump is selected)
Response timeT90<30s
DisplayLCD screen
Audible≥85dB at 1m
Alarm methodVisual, audible and vibrative signals
BatteryDC3.7V 2500mAh Lithium battery
Operating time≥8h
Event log100,000 events
Working temperatureToxic gases: -20℃~50℃   Combustible: -40℃~70℃
Working humidity   <95%RH (no condensation)
HousingRubber enclosure

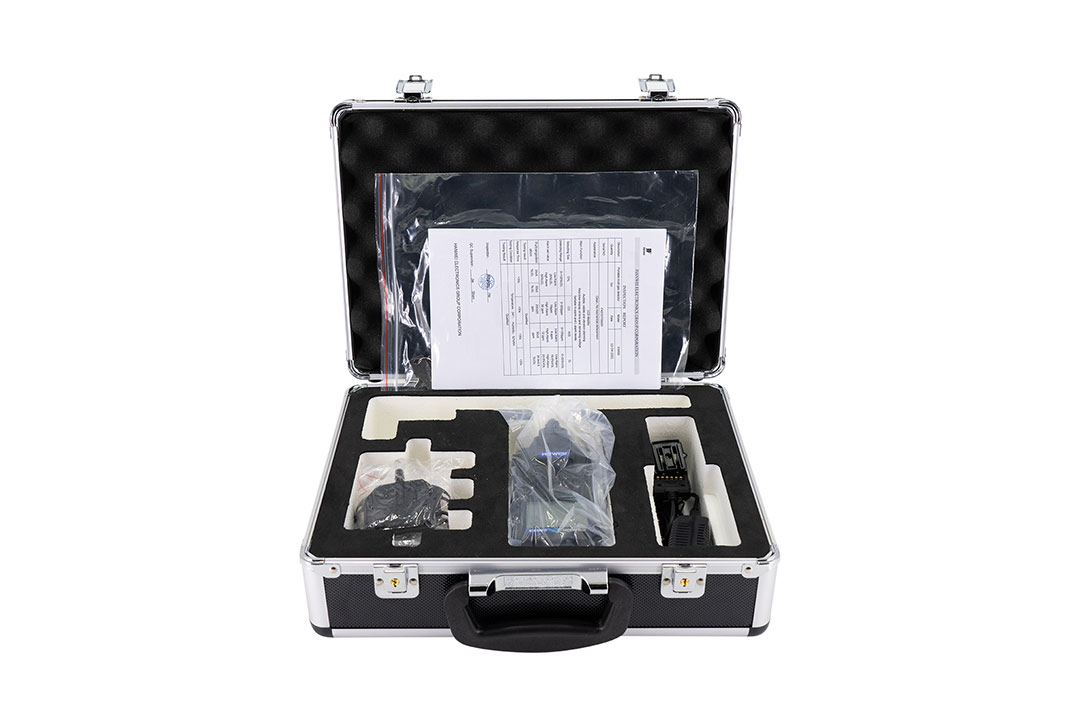

Standard accessoriesOperation manual, calibration cap, charger, screwdriver, USB cable
Dimension & weight147×76×37mm, about 350g
Ex gradeEx ia IIC T4 Gb
Ingress protectionIP66
