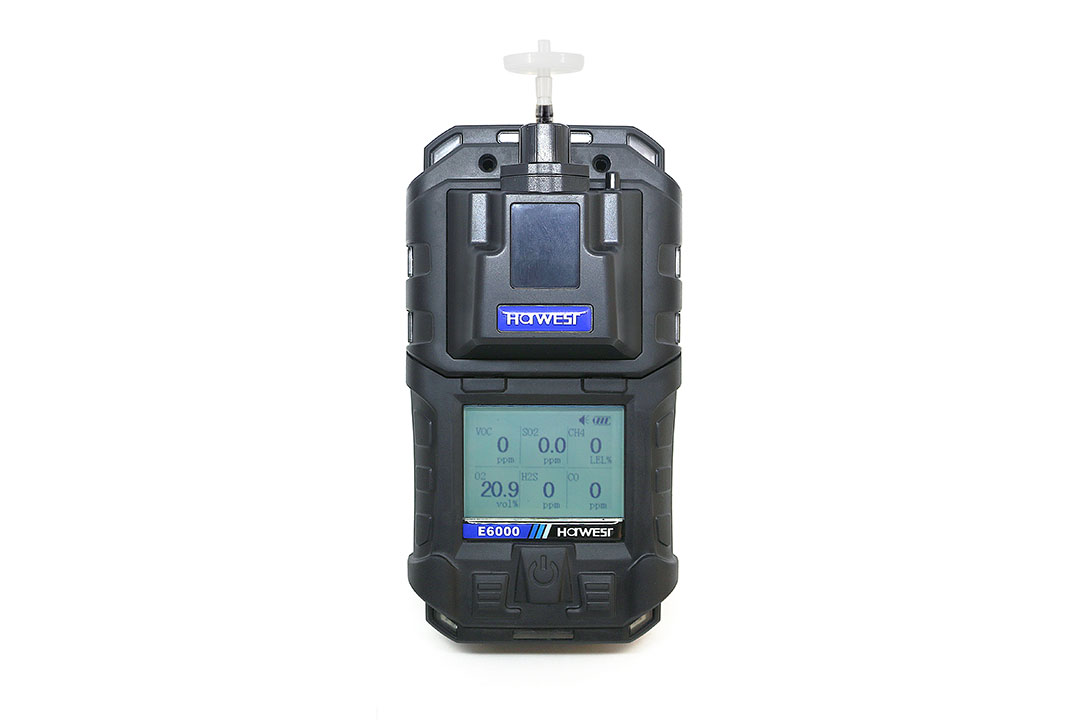

E6000 Portable Multi-gas Detector (6 gases maximum)

  • Maximum six (6) gases
  • Interchangeable smart sensor module
  • Built-in sampling pump (optional)
  • Visual, audible and vibration alarm
  • Audible: ≥80dB at 1m
Description

E6000 is a multi-gas detector up to measure the concentrations of 6 gases simultaneously. It adopts interchangeable smart sensor modules, easy to replace the sensors and maintenance. It can combine various gases: O2, toxic gases, combustible gases., convenient for the workers to monitor the gas environment in working site. Send alarms when exceeding gas concentration is detected, protesting the workers from danger caused by O2 deficiency, toxicity and explosion.

Features

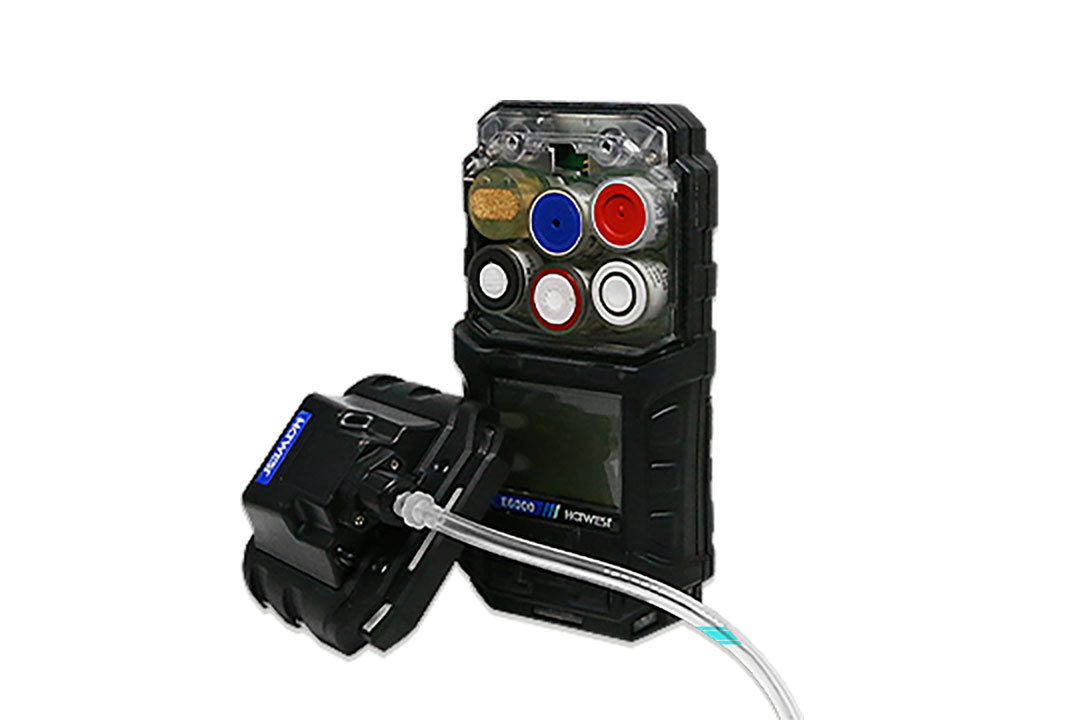

Interchangeable smart sensor module

Intrinsically safe

Built-in sampling pump (optional)

Visual, audible and vibration alarm

Adjustable alarm levels and span calibration values

Password management

Self-test after power on

Self-diagnostic and self-correction function

Real-time clock

Specifications
Measuring gasflammable gas, toxic gas, O2
Measuring rangePlease refer to our gas list
Sensor typeCatalytic sensor, electrochemical sensor, NDIR sensor, PID sensor
Sensor lifeCatalytic sensor: 3 years
Electrochemical: 2 years (1 year for O2 sensor)
NDIR sensor:   5 years
PID sensor:    0.6 to 1 year
Measuring typeDiffusion naturally or pump sampling
Response typeCatalytic sensor: T90≤30s
Electrochemical: T90≤60s
NDIR sensor:   T90≤10s
PID sensor:     T90≤10s
Alarm methodVisual, audible and vibration signals
Audible≥80dB @ 1m
BatteryDC3.6V 6600mAh Lithium-ion battery
Event log 100,000 events
Working temperatureToxic gases, O2: -20~50
Combustible gases:-40~70
Humidity<95%R.H.(no dews)
Standard accessoriesOperation manual, calibration cap, charger, USB cable, software, suitcase
HousingRubber enclosure
Dimension168mm*91mm*45mm
WeightAbout 500g
Ingress protectionIP66
Ex gradeEx d ib IIC T4 Gb / Ex ib D21 T4
